Dimensions
Height: 163.41 mm
Width: 77.04 mm
Thickness: 8.1 mm
Weight: 211g
Display
Parameters
Size: 6.83″ (measured diagonally from corner to corner)
Resolution: 1.5K (FHD+), 2800 x 1272
Pixel density: 450 ppi
Aspect Ratio: 19.8:9
Screen-to-body Ratio: 93.6%
Refresh Rate: Up to 144Hz (60/90/120/144Hz)
Panel Type: Swift AMOLED with Ultra HDR support
Adjustible / Full-screen (HBM) / Peak Brightness: 800 / 1400 / 1800 nits
Color: 10-bit (1.07 billion colors)
Support sRGB, DCI-P3
100% DCI-P3
Touch Response (Instantaneous): Up to 3000 Hz
Eye-care Pulse-Width Modulation: 3840 Hz
Sun-amp technology: Yes
Protective Material: Corning Gorilla Glass 7i (exclusively co-developed material)
Features
Nature tone display
Eye comfort
Bed time mode
Screen color mode
Color personalization
Color vision enhancement
Auto brightness
Manual brightness
Screen color temperature
Night Mode
Multi-brightness color calibration
Performance
Operating System: OxygenOS 15.0 based on Android™ 15
CPU: Qualcomm® Snapdragon™ 8s Gen 3 Mobile Platform
GPU: Qualcomm® Adreno™ 735
RAM: 8 / 12GB LPDDR5X with OnePlus RAM-Vitalization
RAM Expansion: 4/6/8GB (8GB RAM), 4/8/12GB (12GB RAM)
Storage: 256/512GB UFS 3.1
Available configurations: 8GB + 256GB / 12GB + 512GB
Heat dissipation area: 32207mm²
Battery: 6,800 mAh (Single-cell non-removable)
80W SUPERVOOC Charging / 18W PD（55W PPS）
Reverse Charging: 5W (Wired only)
Bypass Charging: Yes
Haptics: X-axis motor
Certification: TÜV SÜD 72-month Fluency Rating A
Camera
Main Camera
Sensor: Sony LYT-700 CMOS (aka IMX906)
Sensor Size: 1/1.56″
Megapixels: 50
Pixel Size: 1.0 µm
Lens Quantity: 6P
Tri-axis Optical Image Stabilization: Yes
Tri-axis Electronic Image Stabilization: Yes
Focal Length: 24 mm equivalent
Aperture: ƒ/1.8
Field of View: 84°
Autofocus: Yes
Ultra-Wide
Sensor: OV08D10
Sensor size: 1/4″
Megapixels: 8
Pixel Size: 1.12 µm
Lens Quantity: 5P
Tri-axis Electronic Image Stabilization: Yes
Focal Length: 15 mm equivalent
Aperture: ƒ/2.2
Field of View: 116°
Autofocus: Yes
Macro: 3.5 cm
Flash
LED
Zoom
0.6-20x digital zoom
Video
4K video at 60/30 fps
1080p video at 60/30 fps
720p video at 30 fps
EIS/OIS video: 4K video at 60/30 fps, 1080p video at 60/30 fps (default), 720p video at 30 fps
Slo-mo video at 1080p at 120 fps, 720p at 240 fps
Time-lapse at 4K video at 30 fps, 1080p video at 30 fps
Digital zoom: Up to 18x
Dual-view video at 1080p, 30 fps
Video zoom: 4K video at 60/30 fps, 1080p video at 60/30 fps, 720p video at 30 fps
Cinematic: 3840×1644 at 30 fps
Video Editor
Features
Photo, Video, Portrait, Nightscape, Pro Mode, Panorama, Cinematic, Slo-mo, Long Exposure, Dual-view Video, Time-lapse, Text-scanner, Hi-Res Mode, Tilt-shift, Google Lens.
Front Camera
Sensor: SAMSUNG ISOCELL JN5
Sensor Size: 1/2.75″
Megapixels: 50
Lens Quantity: 5P
Pixel Size: 0.64 µm
Tri-axis Electronic Image Stabilization: Yes
Focal Length: 21 mm equivalent
Autofocus: Yes
Aperture: ƒ/2.0
Field of View: 90°
Video
4K video at 60/30 fps, 1080p video at 60/30 fps, 720p video at 30 fps (beautification on 1080p 30 fps or 720p 30 fps only)
Steady Mode: 1080p video at 60 fps
Features
Face Unlock, Photo, Video, Portrait, Nightscape Selfie, Panorama Selfie, Dual-view Video, Time-lapse. Slo-Mo, Retouch, Screen Flash
Connectivity
eSIM
No
Dual SIM
Yes (with Dual SIM Dual Active support)
LTE/LTE-A
4×4 MIMO, Supports up to DL Cat 19/UL Cat 18 (1600Mbps/200Mbps), depending on carrier support
LTE
GSM: 850/900/1800/1900MHz
WCDMA: Bands 1/2/4/5/6/8/19
LTE-FDD: Bands 1/2/3/4/5/7/8/12/17/18/19/20/26/28/32/66
LTE-TDD: Bands 38/39/40/41/42
5G NR: n1/n2/n3/n5/n7/n8/n12/n20/n28/n38/n40/n41/n66/n75/n77/n78
*Network connectivity may vary depending on carrier’s network and related service deployment.
Wi-Fi
2×2 MIMO, Support 2.4G/5G 160MHz, Wi-Fi 6, Support WiFi 802.11 a/b/g/n/ac/ax
Bluetooth
Bluetooth 5.4, support aptX, aptX HD, LDAC, AAC, SBC, LHDC 5.0
NFC
NFC enabled
Positioning
GPS, GLONASS, BDS, Galileo, QZSS
Sensors
In-display Fingerprint Sensor
Accelerometer
M-sensor Electronic Compass
Gyroscope
Ambient Light Sensor
Proximity Sensor
Sensor Core
Infrared blaster
Ports
USB 2.0, Type-C
Support standard Type-C earphone
Dual nano-SIM slot
Buttons
Gestures and on-screen navigation support
Plus Key
Audio
Dual Stereo Speakers
Noise cancellation support
Multimedia
Audio Supported Formats
Playback: AAC, AMR, MIDI, MP3, OGG, WAV, FLAC, APE, WMA
Recording: WAV, AAC, MP3
HDR10/HDR10+
Video Supported Formats
Playback: 3GP, MP4, MKV, HEVC, AVI, AVC, VP9, VP8, AV1, FLV, MOV
Recording: MP4
Image Supported Formats
Playback: JPEG, PNG, AVIF, WEBP, GIF, BMP, WBMP, HEIF, DNG, ICO
Output: JPEG, HEIF
In The Box

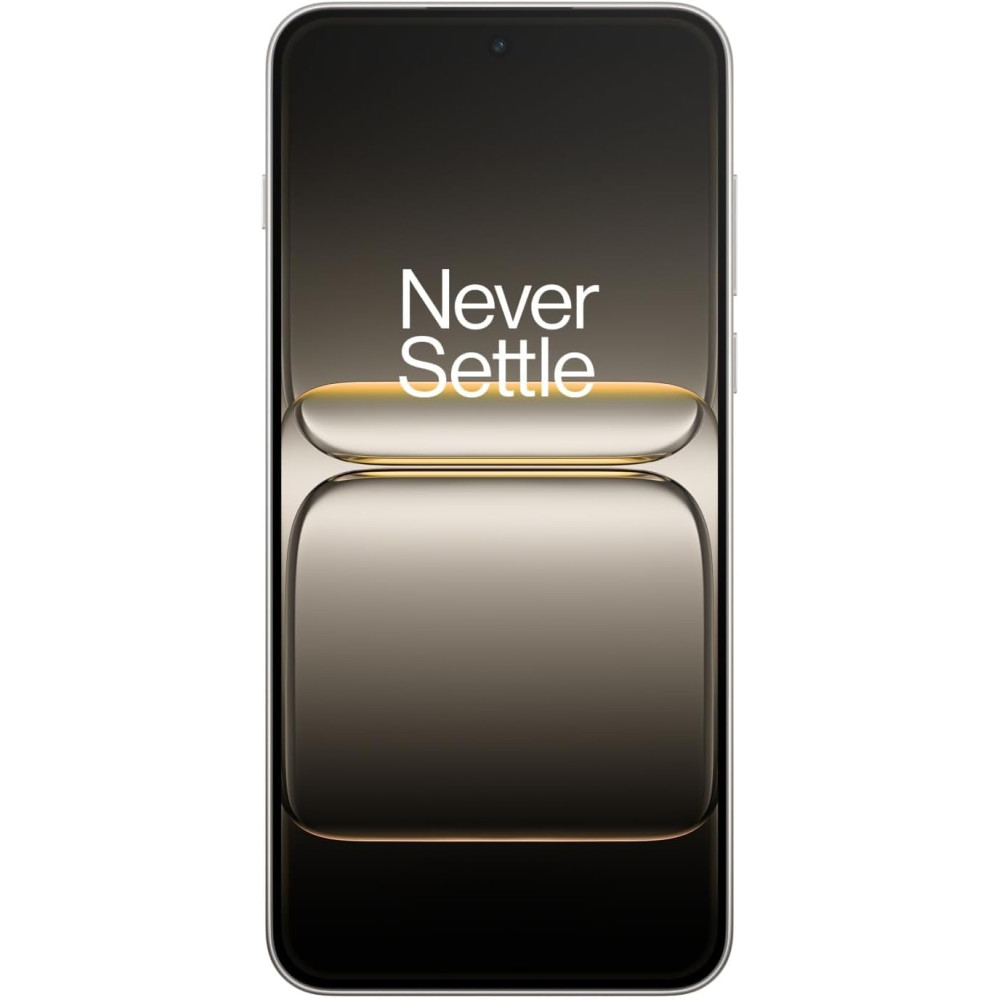

OnePlus Nord 5
Type-A to C Cable
Quick Start Guide
Safety Information
Screen Protector (pre-applied)
SIM Tray Ejector
